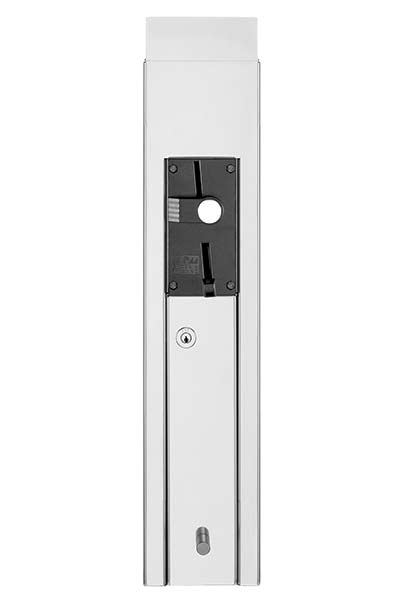

Coin Checker

WMF 1100 S, WMF 1200 F, WMF 1200 S, WMF 1500 S, WMF 1500 S+, WMF 5000 S, WMF 5000 S+, WMF 9000 S+, WMF 9000 F

Data:

• Width 105 mm
• Height 502 mm
• Depth 350 mm

Specifications:

• Connection for 1 WMF coffee machine per coin checker
• Installation on the right side of the coffee machine
• Acceptance of coins (5 cents to 2 EUR) and WMF token coins
• No change return
• Each drink can be set to a specific price
• Sales price up to 99

*WMF 1200 F/WMF 1200 S is only compatible with a double-price coin checker, WMF 1200 F only without optional side brewing arm.

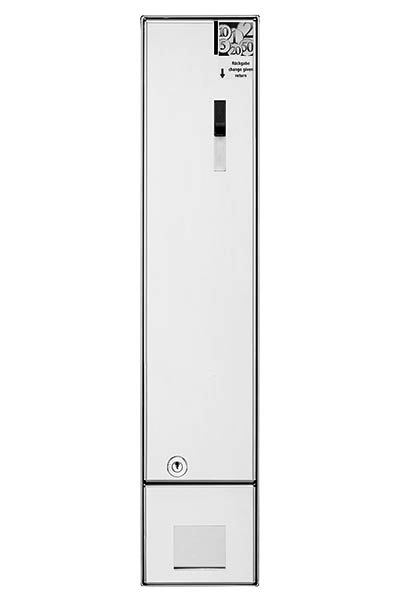

Coin Changer

WMF 1100 S, WMF 1500 S, WMF 1500 S+, WMF 5000 S, WMF 5000 S+, WMF 9000 S+, WMF 9000 F

Data:

• Width 105 mm
• Height 500 mm
• Depth 350 mm

Specifications:

• Connection for 1 WMF coffee machine per coin checker
• Installation on the right side of the coffee machine
• Acceptance of coins (5 cents to 2 EUR) and WMF token coins
• Return of change coins
• Each drink can be set to a specific price
• Sales price up to 99

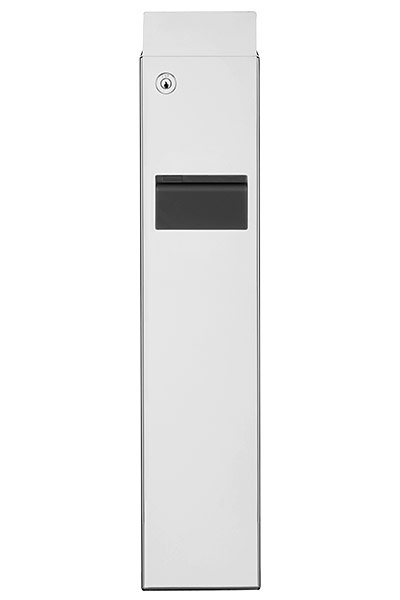

Card reader body

WMF 1100 S, WMF 1500 S, WMF 1500 S+, WMF 5000 S, WMF 5000 S+, WMF 9000 S+, WMF 9000 F

Data:

• Width 130 mm
• Height 500 mm
• Depth 350 mm

Specifications:

• Connection for 1 WMF coffee machine per card reader body
• Installation on the right side of the coffee machine
• Suitable for MDB-interface

Important information:

• A card reader is procured by a customer oneself.
• For installation forward the card reader and all available information to WMF Germany in Geislingen.
• Card reader compatibility can be checked by WMF Germany (use MDB-interfaces only).
• Compatible card reader manufacturer are, e.g.: Girovend, Maas, Wittenborg, Cashcard, Kalisch, Alldata/Intercard, Seitz, Saecocard, Schomäcker. Cash card reader: Thales

Vending machines

for WMF combiNation F

Coin checker

Data:

• Width 170 mm
• Height 604 mm
• Depth 496 mm

Equipment:

• A WMF combiNation F can be connected
• This is always installed on the right of the coffee machine
• Acceptance of coins (5 cents to 2 EUR) and WMF token coins
• No change given
• Set to a sales price

Coin changer

Data:

• Width 170 mm
• Height 604 mm
• Depth 496 mm

Equipment:

• Up to 2 WMF coffee machines can be connected for each coin changer
• This is always installed on the right of the WMF coffee machine
• Acceptance of coins (5 cents to 2 EUR) and WMF token coins
• Change given (based on the difference between set price and coins inserted)
• Each beverage can be set to a specific price

Card reader housing

Data:

• Width 170 mm
• Height 604 mm
• Depth 496 mm

Equipment:

• Connection for 1 coffee machine
• This is always installed on the right of the machine
• Connection via MDB interface

Important information:

• A card reader is provided by the customer and sent to the WMF factory in Geislingen for installation
• Forward all information relating to the card reader to WMF
• Compatible card reader manufacturers are, e.g.: Girovend, Maas, Wittenborg, Cashcard, Kalisch, Alldata / Intercard, Seitz, Saecocard, Schomäcker. Money card reader: Thales
• WMF checks the card reader beforehand for compatibility on request (only MDB readers are suitable) and then installs it into the housing.
