WMF Coffee Machine – 1100 S

WMF 1100 S

The WMF 1100 S – the compact, fully automated coffee machine using professional technology.

With a maximum cup output of up to 80 cups per hour, the WMF 1100 S delivers a large variety of beverages, with reliability and consistently high quality despite its compact dimensions.

Using the smart operating concept and the 7-inch touch display, anyone can choose and prepare delicious coffee and chocolate beverages with no prior knowledge.

Thanks to the 5 on-trend colours available, the WMF 1100 S fits into any design scheme. The compact size provides a wide range of installation options. On a worktop, the 60 cm height to the wall unit is easily adequate for installation. For quiet operation, specially decoupled grinders are used for the coffee preparation process, and with the patented SteamJet, cups can be preheated in a trice. The professional technology also allows fresh milk to be used.

The daily cleaning process is very quick and easy thanks to the patented Click&Clean function that is tried and tested in catering operations.

wmf-1100s-product-video

WMF 1100 S product video

Learn more about the most important features and equipment options of the WMF 1100 S in our product video:

Watch video
wmf-1100s-beverage-variety

Beverage variety

The WMF 1100 S has something for everyone. From hot beverages with or without milk, to those with or without milk foam – espresso, ristretto, cappuccino, café crème, espresso macchiato or caffè latte – the beverage variety is endless.

wmf-1100s-intuitive

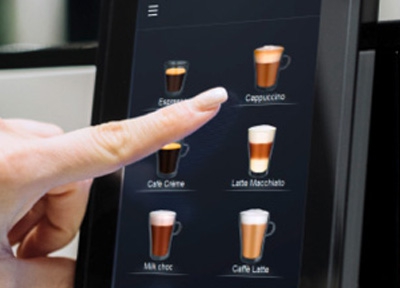

Intuitive touch display

With its vertical swipe function, the intuitive service design of the 7 Inch touch display enables quick and purposeful guidance through the various menus – Sophisticated ergonomics that simplify more than just the selfservice area.

wmf-1100s-cleaning

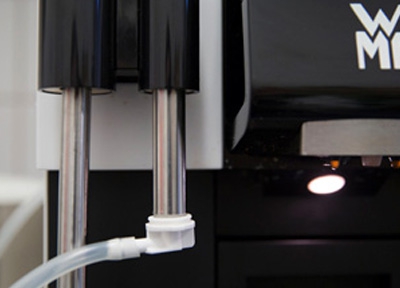

Easy cleaning

Easy cleaning of the milk system with Click&Clean: It saves daily disassembly of the milk frother and manual cleaning only needs to be done once a week.

wmf-1100s-systems

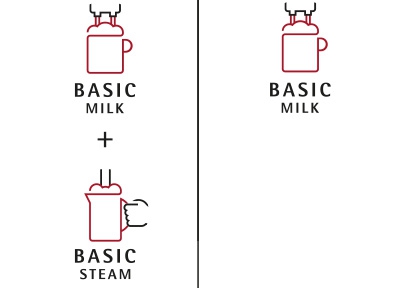

Milk and steam systems

Create professional coffee experiences in no time, to your exact preferences, with the WMF milk and steam systems.

Milk Systems
wmf-1100s-mycoffeeapp

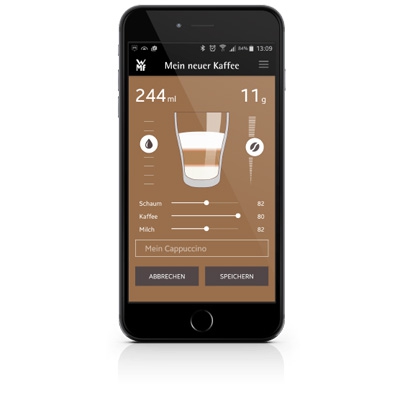

WMF MyCoffee App (optional)

Create your personalised coffee recipe right from your smartphone using the WMF MyCoffee App. It doesn’t get smarter than that. Simply select your favourite recipe, adjust the amount of coffee, milk and foam, enjoy and then share the recipe with others.

WMF MyCoffee
wmf-1100s-coffeeconnect

WMF CoffeeConnect as an option.

WMF CoffeeConnect provides you with the option to collect valuable machine data. Wherever you are, you can obtain an overview of your sales figures and current service information at any time. You will receive warnings which will let you know if you are running low on consumables or if maintenance is required.

Learn more
Recommended daily / max hourly output* up to 80 cups
Nominal Output / power supply 1.9 - 2.3 kW / 230 V
Hourly output according to DIN 18873-2*
for Espresso
for Café Crème 
for Cappuccino

105 cups
75 cups
105 cups
Fresh milk beverages
Basic Milk
Basic Milk + Basic Steam


1 or 2 integrated coffee hoppers / Enhancements (choc or topping variations, generally only 1 coffee hopper) approx. 550 g/ With enhancements approx. 1100 g (Filling capacity dependent on coffee bean size)
SteamJet
Basic Milk
Basic Milk + Basic Steam


Total hot water Output / hour 110 cups (22 litres)
Manual milk foaming and beverage heating
Basic Milk
Basic Milk + Basic Steam

-
Energy loss per day according to DIN 18873-2 Topping / Basic Milk approx. 0.76 kWh /day
Outer dimensions (width / height** / depth) 325 / 500 / 561 mm
! The required depth changes due to milk hose guidance in connection with the following coolers: Depth for:
03.9190.5001: 631 mm
03.9192.6011 / 03.9192.6021 / 03.9192.6041 / 03.9469.6041 / 03.9469.7012 /
03.9469.7022: 616 mm
Water supply Tank approx. 4.5 litres
Empty weight depending on configuration approx. 25.5 kg
Continuous sound pressure (LpA)*** < 70 dB(A)

* Performance is depending on cup-size, quality settings, discharge, configuration and nominal output. The recommended maximum daily output is based on our catalogue and service concept. However, these average values serve merely as a guideline. Let our trained WMF Team match the ideal coffee machine desgin to your specific needs.

** Height included Display. Height of top cover without display and enhancements: 460 mm. Height of product hopper enhancements incl. lock (without key): 556 mm.

*** The A-rated sound pressure level LpA (slow) and LpA (impulse) at service staff works stations is under 70 dB(A) in any Operation mode.

Above 5˚ dKH (water hardness) a WMF water filter must be fitted.

WMF 1100 S

Equipment

  • 1 grinder
  • water tank
  • integrated milk mixer
  • hot water outlet
  • Steam Jet
  • power supply 230 V

Options

  • 2nd grinder
  • powder hopper
  • fixed water kit
  • Basic Steam
  • bean hopper enhancements
  • powder hopper enhancements
  • grounds discharger through counter

Additions

  • coin checker
  • coin changer
  • card reader

Not all options and / or extensions can be combined with each other.

PDF Download

WMF 1100 S planning information / data sheet (PDF, 163.18 KB)
