WMF Filter Coffee Machine 9000 F (External Storage)

WMF 9000 F (External Storage

Full-flavoured filter coffee, on a grand scale.

Available in two different versions, the WMF 9000 F boasts all the advanced functions required in any situation where high volumes of high-quality filter coffee are demanded, whether in a mass catering or self-service environment.

The WMF 9000 F automatic filter coffee machine combines high performance, excellent coffee quality, and user-friendly operation. It offers a variety of innovative features to satisfy the requirements of the mass catering sector. Naturally, both versions of this fully automated filter coffee machine share the premium materials, advanced technology, and robust construction you expect from WMF, ensuring many years of reliable and profitable service.

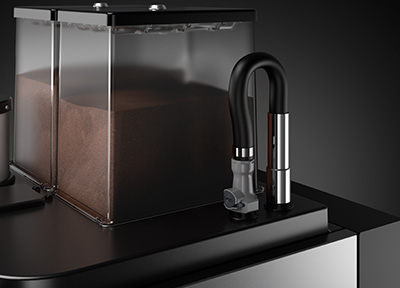

Quantity brewing arm

The brewing arm dispenses the coffee in brewing batches of 1 to 5 litres into a heated external thermal container with automatic brewing. In this case, the brewing quantity can be up to 40 litres, depending on the size of the container.

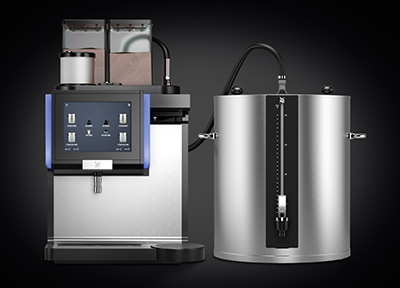

Output 100 litres per hour

Based on the requirements of mass catering, this version of the WMF 9000 F supplies an additional brewing quantity of up to 100 litres per hour to an external container with automatic brewing. This makes it particularly suitable for locations with a high coffee consumption.

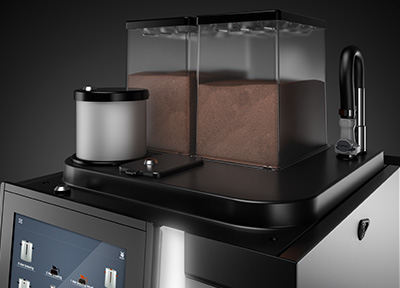

Two ground coffee hoppers

With two 2.5 kg hoppers available, you have the opportunity to offer two different types of ground coffee, for example regular and decaffeinated. But if you choose to use only one type, you can take advantage of twice the capacity - especially useful at peak times.

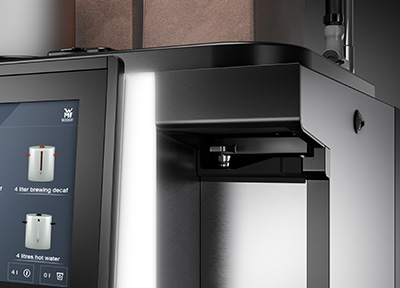

Swing-out pot brewing arm

During preparation via the pot brewing arm, coffee is dispensed into an external pot or jug. The pot brewing arm is optimized for filling pots of up to 2.8 litres in capacity, and can be extended to fill different pot sizes (up to 175 mm wide, 398 mm tall). Available for both versions.

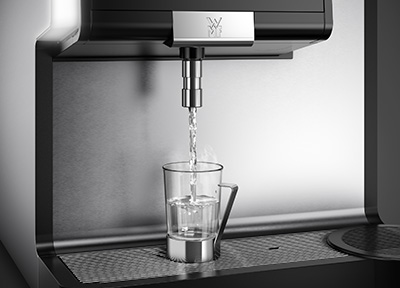

Hot water output

A separate spout directly below the display offers high efficiency and user- friendliness thanks to the fast and flexible dispensing of hot water, even if, for example, only a small amount of water is needed for a pot of tea. Available for both versions.


10 inch colour touch display

The interactive 10’’ colour touch display is designed for easy navigation of the logically structured menu, with large beverage buttons making daily operations fast and simple, and a customizable toolbar for rapid access to preset options. Available for both versions.

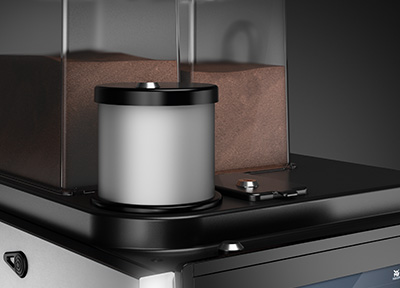

Easy automatic cleaning

Taking advantage of a cleaning granulate dispenser, the cleaning processes of this automatic filter coffee machine are automatic, efficient and, above all, HACCP-compliant. Available for both versions.

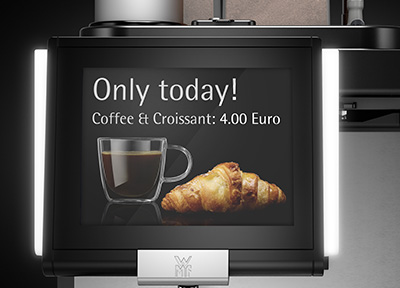

The colour touch display offers you opportunities to increase sales through eye-catching advertising or tailored special offers. So while your customers’ beverages are being prepared, you can take advantage of their time and attention. Available for both versions.


WMF CoffeeConnect as a standard.

WMF CoffeeConnect provides you with the option to collect valuable machine data. Wherever you are, you can obtain an overview of your sales figures and current service information at any time. You will receive warnings which will let you know if you are running low on consumables or if maintenance is required.

Learn more
Recommended for an average daily requirement of * 100 l / hour
Quantity brewing
Pot brewing
Integrated storage container -
Ground coffee hopper 2 * 2.5 kg, expandable to 3.8 kg
Coffee dispensing of single cups -
Hot water output
Self-service operation -
Coffee grounds disposal
Automatic cleaning with granulate dispenser
LED illumination
Nominal power rating 8.5 – 10.1 kW / 380 – 415 V
External dimensions (width / height ** / depth) 450 / 782 / 605 mm
Drinking water supply line Customer’s on-site: min. 0.36 MPa (3.6 bar) flow pressure at 6 l/min***, 1/2"
(TW12) with main tap and filter (250 μm)
Machine side: 1 x 1/2" (TW12) boiler feed, 1 x 3/8" (TW8) rinsing line, min.
0.2 MPa (2 bar) flow pressure at 6 l/min, max. 0.6 MPa (6 bar), water infeed
temperature max. 35 °C
Empty weight Approx. 65 kg
Continuous sound pressure level (LpA) **** < 70 dB(A)

* Output is determined using a machine with fixed water supply and is dependent on cup size, quality settings, spout, model and nominal power rating. The recommended maximum daily capacity is based on our catalogued service concept. However, these average values serve merely as a guideline. Let our trained WMF team match the ideal coffee machine design to your specific needs.

** Height including coffee bean hoppers

*** Usual pressure losses through the water connection set and water filter are considered, so that the machine flow pressure of 0.2 MPa (2 bar) at 8 l/min, that is required for the max. hourly output, is secured.

**** The A-weighted sound pressure level LpA (slow) and LpA (impulse) in the operating personnel ́s workplace is always under 70 dB in every mode of operation (A).

WMF 9000 F


  • 2 ground coffee portioners
  • Quantity brewing arm
  • Pot brewing arm
  • Automatic granulate dosing
  • Power supply 8,5 - 10,1 kW / 400V
  • Water supply: 1/2" hose connector with mains tap and filter, customers on-site


  • Feet 100 mm
  • Power supply 12,4 - 14,7 kW / 400V
