WMF Coffee Machine – 5000 S

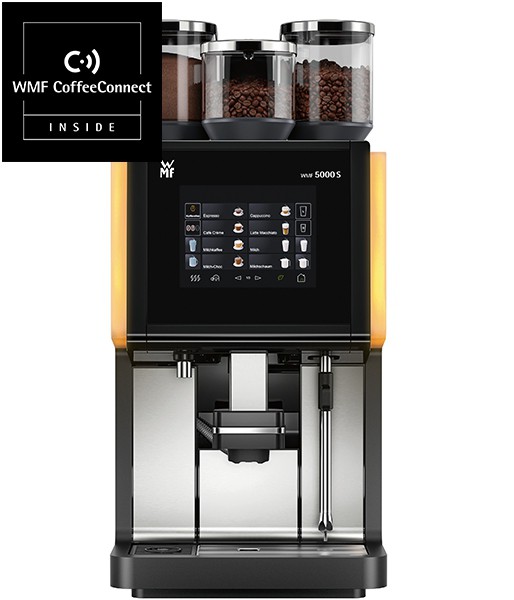

WMF 5000 S

Coffee to go, go, go! Why wait for amazing coffee?

The WMF 5000 S is our speciality machine for those who live life in the fast lane. It perfectly satisfies the need to provide the fullest range of indulgence and finest quality at maximum speed. Ideal for anyone who can’t wait for great coffee specialities.

Consequently, the WMF 5000 S has an in-built recipe for success: The more indulgence created per hour, the greater your daily turnover. And that you can count on.


WMF 5000 S: Image video

Learn more about the WMF 5000 S in our video:

Watch the video

Compact design

Featuring impressively sleek dimensions. This leaves space available for other coffee machines or add-on equipment.



The useful Small-Medium-Large (SML) functions assign different predefined cup volumes to every beverage.



The heavy-duty brewer and the high-performance pump guarantee a long service life and top performance.



Large touch display with a self-explanatory digital user manual. Automatic display of ongoing processes.



Perfectly matching add-on equipment and vending machines for making your work easier and boosting your capacity.

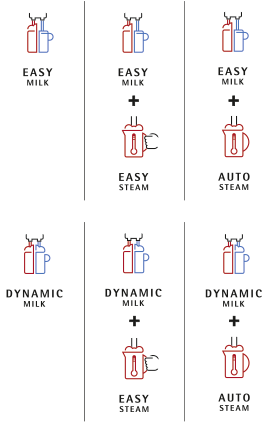

Milk and steam systems

Create professional coffee experiences in no time, to your exact preferences, with the WMF milk and steam systems.

In addition to Easy Milk for hot and cold milkshake beverages, there is also the Dynamic Milk system, which is a fully automatic system for preparing hot and cold milk and milk foam beverages, plus an even wider variety of milk foam consistencies.

Milk Systems Steam Systems

WMF CoffeeConnect as an option.

WMF CoffeeConnect provides you with the option to collect valuable machine data. Wherever you are, you can obtain an overview of your sales figures and current service information at any time. You will receive warnings which will let you know if you are running low on consumables or if maintenance is required.

Learn more
Recommended daily / max hourly output* up to 250 cups
Nominal Output / power supply 2,75–3,25 kW / 220–240 V or 6,0–7,1 kW / 380–415 V
Hourly output according to DIN 18873-2*
for Espresso
for Café Crème 
for Cappuccino

144/220 cups
112/136 cups
144/220 cups
Total hot water output / hour (220–240 V) 160 cups
Total hot water output / hour (380–415 V) 180 cups
Energy loss per day according to DIN 18873-2 (220–240 V) 1,55 kWh
Energy loss per day according to DIN 18873-2 (380–415 V) 2,23 kWh
Hot milk beverages (Easy Milk)
Hot milk foam beverages (Easy Milk)
Cold milk beverages (Easy Milk)
Cold milk foam beverages (Easy Milk) -
Hot milk beverages (Dynamic Milk)
Hot milk foam beverages (Dynamic Milk)
Cold milk beverages (Dynamic Milk)
Cold milk foam beverages (Dynamic Milk)
Reinigungssystem (Easy Milk) Easy Clean**
Cleaning system (Dynamic Milk) Clean in Place***
Coffee bean hopper left or right, approx. 1100 g, middle unit approx. 550 g
choc or topping hopper (optional) approx. 1200 g
External dimensions (width / height**** / depth) 325 mm / 706 mm / 590 mm
Water supply Constant water supply connection 3/8”, TW10 (e.g. angle valve)
Empty weight approx. 37 kg
Continuous sound pressure (LpA)*** < 70 dB(A)

* Performance is depending on cup-size, quality settings, discharge, configuration and nominal output. The recommended maximum daily output is based on our catalogue and service concept. However, these average values serve merely as a guideline. Let our trained WMF Team match the ideal coffee machine desgin to your specific needs.

** Height included Display. Height of top cover without display and enhancements: 460 mm. Height of product hopper enhancements incl. lock (without key): 556 mm.

*** The A-rated sound pressure level LpA (slow) and LpA (impulse) at service staff works stations is under 70 dB(A) in any Operation mode.

Above 5˚ dKH (water hardness) a WMF water filter must be fitted.

WMF 5000 S


  • 1 grinder (left hopper without grinder - dummy)
  • Hot water
  • SteamJet
  • Jet option
  • Automatic cleaning
  • Constant water supply and drainage connection
  • Lockable hoppers
  • LED illumination
  • 8” touch screen display
  • PIN code access
  • Up to 48 product buttons
  • Power connection 220–240 V / 3 kW


  • 2nd grinder
  • Powder dosing mechanism
  • Double powder dosing mechanism
  • Easy Milk or Dynamic Milk
  • Auto Steam or Easy Steam
  • Appliance feet
  • Grounds disposal through counter
  • Power connection 400 V / 6.5 kW

Not all options and / or extensions can be combined with each other.

PDF Download

WMF 5000 S Dynamic Milk planning information (PDF, 197.07 KB)
WMF 5000 S Easy Milk planning information (PDF, 196.96 KB)
