WMF Coffee Machine – 5000 S+

WMF 5000 S+

Quality Time. When indulgence can't wait.

A range of applications as diverse as the variety of beverages: introducing the WMF 5000 S+, the high-performance coffee machine for those who want to provide superior moments of indulgence even at high output rates. Reliable, easy to operate and with a recommended output of 250 cups a day, the WMF 5000 S+ is designed to meet all your customer's needs.

wmf-5000s+-choc

Choc Mixer

The patented Choc Mixer impresses with its easy handling, cleaning and maintenance. Thanks to the magnetic lock, correct insertion of the mixing cup is guaranteed. An integrated sensor also monitors the perfect fit of the mixer wheel.

wmf-5000s+-display

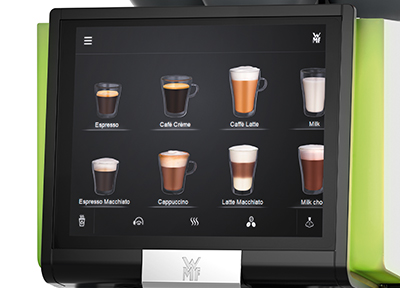

10-inch touch display

The clearly structured interactive colour display of the WMF 5000 S+ facilitates custom designs by selecting your own colour scheme and importing your own beverage images and even videos. Navigation with quick access to the main menu is intuitive thanks to touch and swipe functionality.

wmf-5000s+-auto

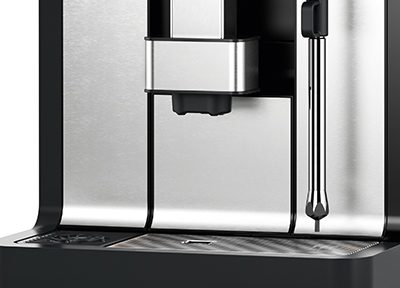

Automatically heightadjustable spout

With the coffee spout correctly positioned, the beverage temperature remains perfect and unsightly splashes of milk on the housing are a thing of the past. To achieve this, the spout height of the WMF 5000 S+ automatically adjusts to every preset stored for the recipe. The automatic height adjustment function is available as standard in all WMF 5000 S+ machines.

wmf-5000s+-assist

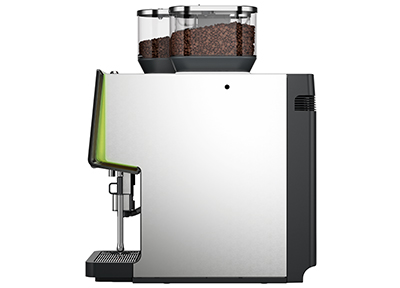

Dynamic Coffee Assist

The intelligent Dynamic Coffee Assist permanently guarantees the highest quality of all espresso- based coffee specialities offered by the WMF 5000 S+. Once the beverage quality has been set, it is continuously monitored and the most important factors for enjoyment, such as the ground coffee quantity and grinding degree, are automatically adjusted if necessary.

wmf-5000s+-milkassist

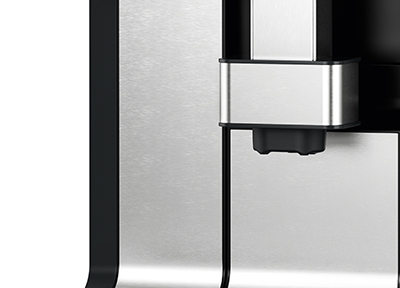

Dynamic Milk Assist

The innovative Dynamic Milk Assist ensures the high and exceptionally consistent quality of all milk beverages. Using state-of-the-art sensors, the system continuously monitors the milk temperature and flow. These values are used, for example, to control the speed of the mixer, creating the perfect milk foam to match the preselected consistency.

wmf-5000s+-parallel

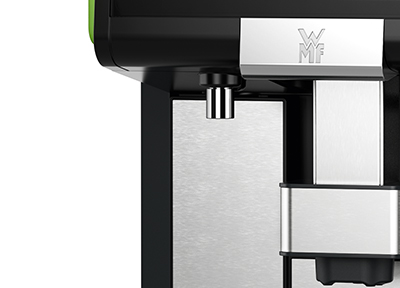

Parallel coffee and hot water preparation (in the 400 V variant)

The perfect balance of speed and consistently high quality – hot water dispensing has no impact on the performance or quality of coffee dispensing, and both operations can be run simultaneously at any time.

wmf-1100s-coffeeconnect

WMF CoffeeConnect as a standard.

WMF CoffeeConnect provides you with the option to collect valuable machine data. Wherever you are, you can obtain an overview of your sales figures and current service information at any time. You will receive warnings which will let you know if you are running low on consumables or if maintenance is required.

Learn more
wmf-5000s+-systems

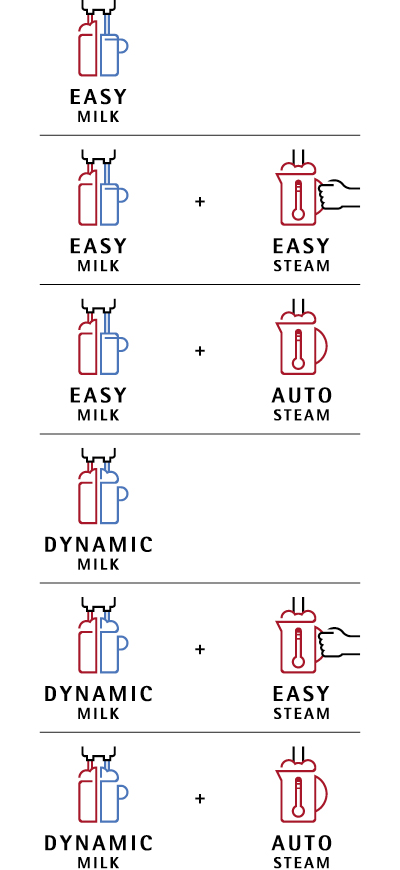

Available milk and steam systems

With the WMF Milk and Steam systems, you’ll be tailoring barista-style coffee creations to individual tastes in no time at all. On top of Easy Milk’s range of hot and cold milk coffee specialities, the Dynamic Milk System enables the fully automated preparation of hot and cold milk and milk foam beverages, as well as a large variety of milk foam consistencies.

More information on the milk and steam systems can be found here:

Milk Systems Steam Systems
wmf-5000s+-milkassist

2-milk solution

The optional 2-milk solution allows you to use two types of milk, including normal, low-fat, soya or lactose-free. The automatic changeover rinsing function ensures that the two milk types do not come into contact with one another and only the selected milk type is used to prepare the beverage.

Recommended daily / max hourly output* up to 250 cups
Nominal Output / power supply
Easy Milk
Dynamic Milk

3,01–3,51 kW / 220–240 V or 8,41–9,96 kW / 380–415 V
3,01–3,51 kW / 220–240 V or 8,41–9,96 kW / 380–415 V
Hourly output according to DIN 18873-2*
for Espresso
for Café Crème 
for Cappuccino

144 / 220 cups
112 / 136 cups
144 / 220 cups
Cold milk beverages
Easy Milk / Dynamic Milk

✔ / ✔
Cold milk foam beverages
Easy Milk / Dynamic Milk

- / ✔
Total hot water output / hour (220–240 V)
Easy Milk / Dynamic Milk

160 cups
Total hot water output / hour (380–415 V)
Easy Milk / Dynamic Milk

180 cups
Energieverlust pro Tag nach DIN 18873-2
Easy Milk / Dynamic Milk

1,55 kWh / 2,23 kWh
Coffee bean hopper Right and left approx. 1100 g, centered approx. 700 g
Choc or topping hopper (optional) Approx. 2000 g
External dimensions (width / height**** / depth) 325 / 716 / 590 mm
Water supply Constant water supply connection
Empty weight approx. 37 kg
Continuous sound pressure (LpA)*** < 70 dB(A)

* Performance is depending on cup-size, quality settings, discharge, configuration and nominal output. The recommended maximum daily output is based on our catalogue and service concept. However, these average values serve merely as a guideline. Let our trained WMF Team match the ideal coffee machine desgin to your specific needs.

** Height included Display. Height of top cover without display and enhancements: 460 mm. Height of product hopper enhancements incl. lock (without key): 556 mm.

*** The A-rated sound pressure level LpA (slow) and LpA (impulse) at service staff works stations is under 70 dB(A) in any Operation mode.

Above 5˚ dKH (water hardness) a WMF water filter must be fitted.

WMF 5000 S+

Equipment

  • 1 grinder (left hopper without grinder - dummy)
  • Hot water
  • SteamJet
  • Jet option
  • Automatic cleaning
  • Constant water supply and drainage connection
  • Lockable hoppers
  • LED illumination
  • touch screen display 8"
  • PIN code access
  • Up to 48 product buttons
  • power connection 220 - 240 V / 3 kW

Options

  • 2nd grinder
  • Powder dosing mechanism
  • Double powder dosing mechanism
  • Easy Milk or Dynamic Milk
  • Auto Steam or Easy Steam
  • Appliance feet
  • Grounds disposal through counter
  • Power connection 400 V / 9 kW

Additions

  • coin checker
  • coin changer
  • card reader body
