WMF Filter Coffee Machine 9000 F (Internal Storage)

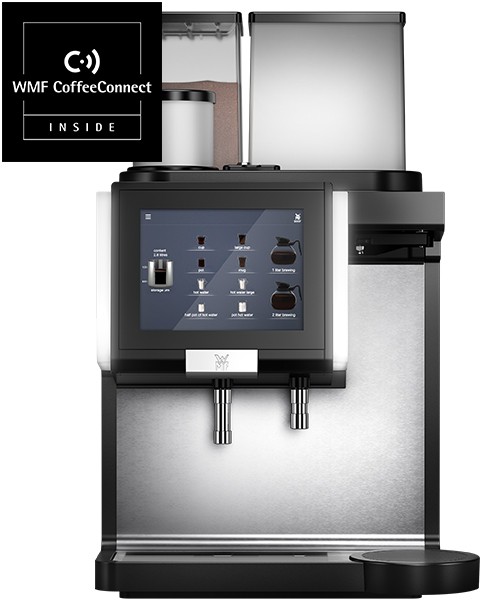

WMF 9000 F (Internal Storage

Aromatic filter coffee, always with a fresh back-up.

Available in two different versions, the WMF 9000 F boasts all the advanced functions required in any situation where high volumes of high-quality filter coffee are demanded, whether in a mass catering or self-service environment.

The WMF 9000 F automatic filter coffee machine combines high performance, excellent coffee quality, and user-friendly operation. It offers a variety of innovative features to satisfy the requirements of high-volume, self-service venues. Naturally, both versions of this fully automated filter coffee machine share the premium materials, advanced technology, and robust construction you expect from WMF, ensuring many years of reliable and profitable service.

Send request

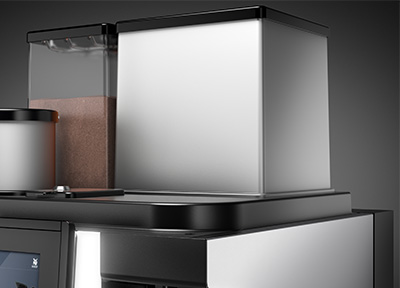

wmf-9000f-internal-container

Integrated storage container

Designed for controlled dispensing, the integrated 4-litre storage container lets you set the maximum brewing quantity, choosing from one, two or four litres. You can also determine a maximum storage period, and decide whether post-brewing should begin automatically when the storage container has been emptied.

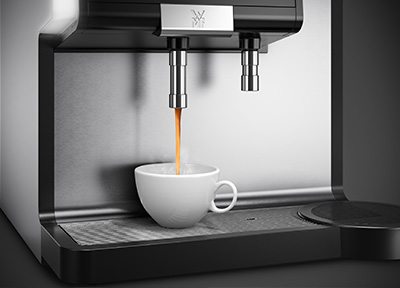

wmf-9000f-internal-dispenser

Coffee dispensing of single cups or small pots

A separate coffee spout below the display allows for easy dispensing of small quantities of filter coffee into individual cups or jugs directly from the internal storage container. With this model the hot water output is positioned at the right side of the coffee spout.

wmf-9000f-internal-maxtime

User-defined maximum storage time

You can set the maximum storage time before the coffee in the internal storage tank is discarded (up to a maximum of 240 minutes). This ensures your coffee never stands for too long, so every cup will be deliciously fresh.

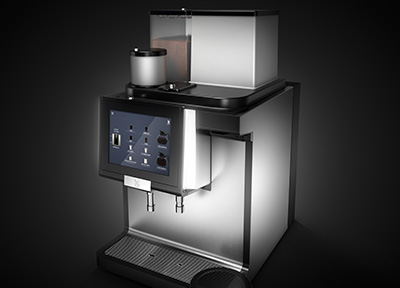

wmf-9000f-internal-brewing

Immediate brewing

The integrated 4-litre storage container has a handy immediate brewing function that you can use when needed. For example, on arrival of a coach full of customers, an immediate brewing quantity of 1 litre, 2 litres or a maximum of 4 litres can be activated.

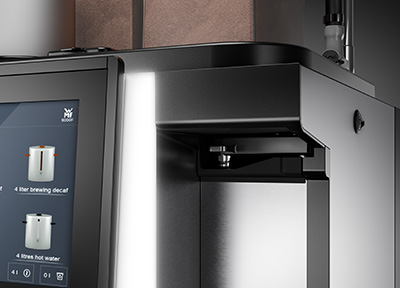

wmf-9000f-internal-arm

Swing-out pot brewing arm

During preparation via the pot brewing arm, coffee is dispensed into an external pot or jug. The pot brewing arm is optimized for filling pots of up to 2.8 litres in capacity, and can be extended to fill different pot sizes (up to 175 mm wide, 398 mm tall). Available for both versions.

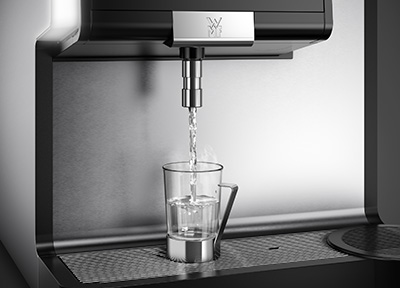

wmf-9000f-internal-hotwater

Hot water output

A separate spout directly below the display offers high efficiency and user- friendliness thanks to the fast and flexible dispensing of hot water, even if, for example, only a small amount of water is needed for a pot of tea. Available for both versions.

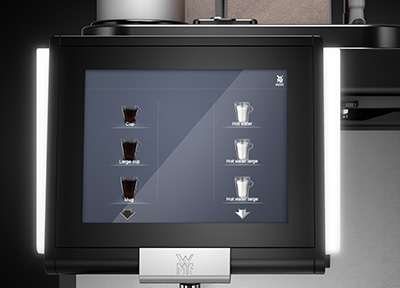

wmf-9000f-internal-display

10 inch colour touch display

The interactive 10’’ colour touch display is designed for easy navigation of the logically structured menu, with large beverage buttons making daily operations fast and simple, and a customizable toolbar for rapid access to preset options. Available for both versions.

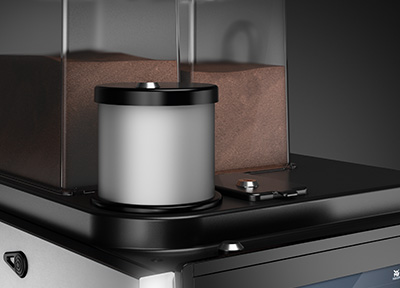

wmf-9000f-internal-cleaning

Easy automatic cleaning

Taking advantage of a cleaning granulate dispenser, the cleaning processes of this automatic filter coffee machine are automatic, efficient and, above all, HACCP-compliant. Available for both versions.

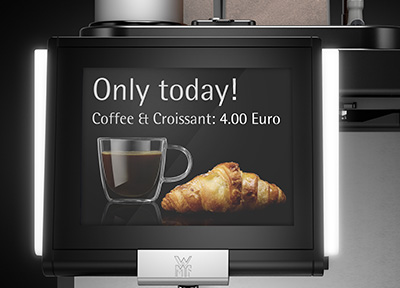

wmf-9000f-internal-display

Advertising

The colour touch display offers you opportunities to increase sales through eye-catching advertising or tailored special offers. So while your customers’ beverages are being prepared, you can take advantage of their time and attention. Available for both versions.

wmf-1100s-coffeeconnect

WMF CoffeeConnect as a standard.

WMF CoffeeConnect provides you with the option to collect valuable machine data. Wherever you are, you can obtain an overview of your sales figures and current service information at any time. You will receive warnings which will let you know if you are running low on consumables or if maintenance is required.

Learn more
Recommended for an average daily requirement of * 500 cups or 50 l / hour
Quantity brewing -
Pot brewing ✔
Integrated storage container ✔
Ground coffee hopper 2.5 kg, expandable to 3.8 kg
Coffee dispensing of single cups ✔
Hot water output ✔
Self-service operation ✔
Coffee grounds disposal ✔
Automatic cleaning with granulate dispenser ✔
LED illumination ✔
Nominal power rating 8.5 – 10.1 kW / 380 – 415 V or 12.4 – 14.7 kW / 380 – 415 V
External dimensions (width / height ** / depth) 450 / 782 / 605 mm
Drinking water supply line Customer’s on-site: min. 0.36 MPa (3.6 bar) flow pressure at 6 l/min***, 1/2"
(TW12) with main tap and filter (250 μm)
Machine side: 1 x 1/2" (TW12) boiler feed, 1 x 3/8" (TW8) rinsing line, min.
0.2 MPa (2 bar) flow pressure at 6 l/min, max. 0.6 MPa (6 bar), water infeed
temperature max. 35 °C
Empty weight Approx. 65 kg
Continuous sound pressure level (LpA) **** < 70 dB(A)

* Output is determined using a machine with fixed water supply and is dependent on cup size, quality settings, spout, model and nominal power rating. The recommended maximum daily capacity is based on our catalogued service concept. However, these average values serve merely as a guideline. Let our trained WMF team match the ideal coffee machine design to your specific needs.

** Height including coffee bean hoppers

*** Usual pressure losses through the water connection set and water filter are considered, so that the machine flow pressure of 0.2 MPa (2 bar) at 8 l/min, that is required for the max. hourly output, is secured.

**** The A-weighted sound pressure level LpA (slow) and LpA (impulse) in the operating personnel ́s workplace is always under 70 dB in every mode of operation (A).
